General Specifications
2700mm (W) x 765mm (D) x 1455mm (H)
Electrical 415V 25 Amp 3 Phase
Weight 440Kg
Warranty 5 years parts warranty on the cabinet, 2 years parts warranty on the wash pump and a comprehensive 1 year parts and labour warranty
-
Features

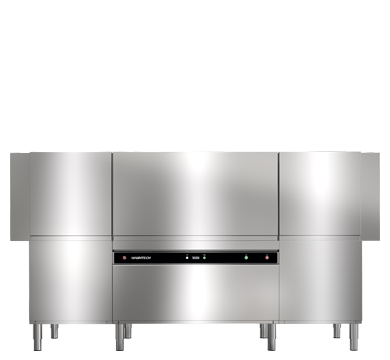

4 stage rack conveyor dishwasher with prewash, powerful wash and ecorinse double sanitising final rinse
High volume 240 racks per hour (4,320 plate equivalents)
180 litres per hour hot water consumptio (65C)
600mm pre-wash module
1200mm wash module with pre-rinse zone
600mm eco-rinse module with recirculating and final rinse stages
In-house CAD design service for every site layout
Economical operation standard rinse economiser ensures water is used only when racks are present
Left to right or right to left operation specify with order
All stainless steel construction including easily removable wash and rinse arms
Double filtration including full width removable filter trays and pump inlet filters
Automatic fill and temperature control including run dry protection for pumps and elements
Safety features include door safety switches and catches, and drive clutch
Watermark certified
