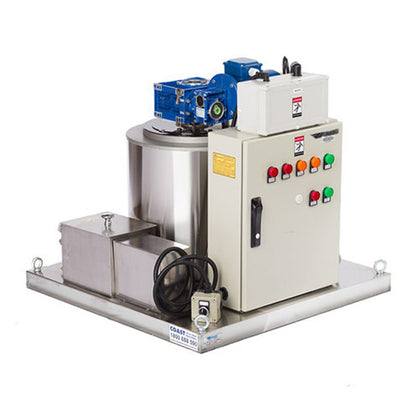

FF1E - Sub Zero Flake Ice Machine (Evaporator Only)
The FF-E Series is suited to those contractors that want to combine a single or multiple evaporators operating on a common refrigeration plant.
The E series comes complete with control system, water pump, and gear motor assembly. This offers the choice for the customer to use their preferred refrigeration equipment.
Grants' flake ice making machines are designed with advanced technology, excellent performance and highly economical energy consumption.Ice is produced at – 9 degrees, from a static vertical evaporator, completely sealed, with minimum maintenance required for the lifetime of the machine. The evaporator is made of high quality, low temperature alloy steel.
Refrigerant: R404A
Ice Production
Produces 1000kg of ice at 25°C Ambient and 15°C Water Temperature per 24hrs.
Dimensions
FF1E: 850mm wide x 1050mm deep x 870mm high
Ice Type
Power Requirements
3 Phase
Warranty
3 years parts & labour on complete system and 5 years on evaporator.
Specification Sheet
FF1-3.2E Click Here
Service Manual
Click Here
