Sub Zero Flake Ice Machine (Including Refrigeration) 3200kg of ice - Grant

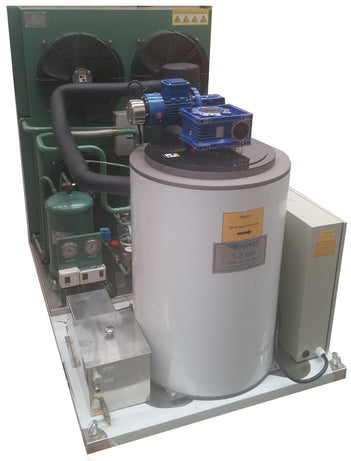

FF3.2AR - Sub Zero Flake Ice Machine (Including Refrigeration)

Grants' flake ice making machines are designed with advanced technology, excellent performance and highly economical energy consumption.

Ice is produced at – 9 degrees, from a static vertical evaporator, completely sealed, with minimum maintenance required for the lifetime of the machine. The evaporator is made of high quality, low temperature alloy steel.

Used in a wide variety of applications including: seafood, meat processing, poultry, supermarkets, chemical & mining.

Refrigerant: R404A

Ice Production
Produces 3200kg of ice at 25°C Ambient and 15°C Water Temperature per 24hrs.

Dimensions
FF3.2AR: 1050mm wide x 1600mm deep x 1420mm high

Ice Type

Power Requirements
3 Phase

Air Cooled
Self Contained

Warranty
3 years parts & labour on complete system and 5 years on evaporator.

Specification Sheet
FF1 - 3.2 AR - Click Here

Service Manual
Click Here
