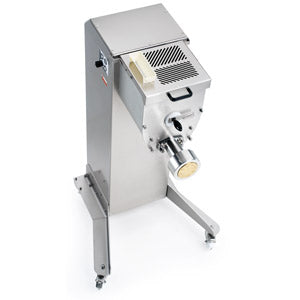

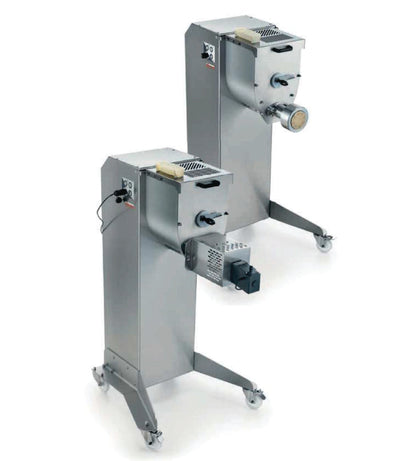

Orchestra Floor Model three phase Pasta machine -21 litres / 9.8kg batch capacity

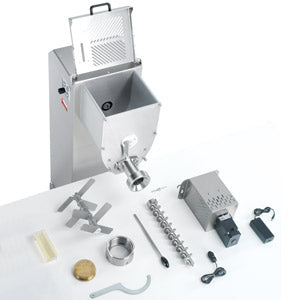

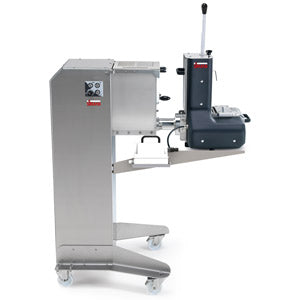

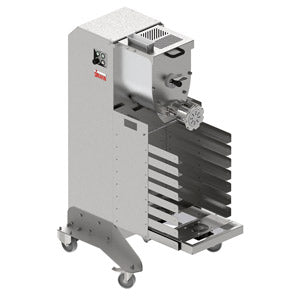

The Orchestra 10 is a freestanding pasta making machine with a Ø 110 mm die and is suitable for small workshops and large restaurants or canteen. It has a self-supporting structure with 4 stainless steel wheels. It is a high-performance machine with a powerful, air-cooled motor with oil bath gear box reducer. The forced air-cooling system ensures it is capable for heavy-duty use. Comes with IP67 controls and a large range of dies and extra accessories including the Raviomatic and an optional pasta cutting attachment also. It is a heavy-duty unit designed for larger applications of pasta supply. The Orchestra 10 has a 3-phase supply and has a 21-litre hopper with 9.8kg batch capacity.

Features

• Suitable for small workshops and large restaurants or canteens.
• Reliable, user-friendly and easy to clean.
• AISI 304 stainless steel body.
• Self-supporting structure with 4 stainless steel wheels.
• Powerful, air-cooled motor with oil bath gear box reducer.

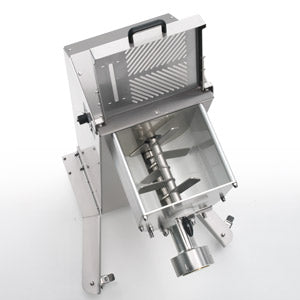

• High-performance and easy to remove kneading paddle.
• Interlocked stainless steel lid.
• Convenient removable tunnel to add liquid ingredients during processing.

Specifications

• Parts Warranty (years): 2
• Labour Warranty (years): 2
• Country of Origin: Italy
• Power (phases): 3 phase
• Volts: 400V
• Power (kW): 2.25kW
• Plug Supplied: Lead only
• Dimensions: 780mm W x 812mm D x 1390mm H
