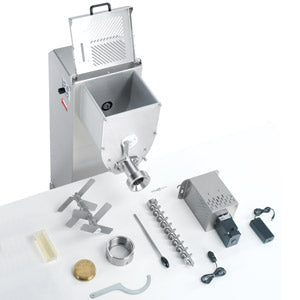

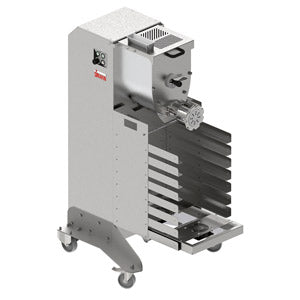

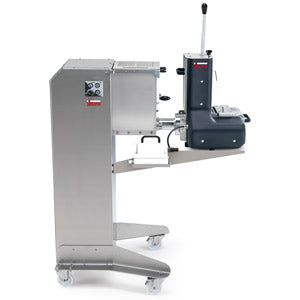

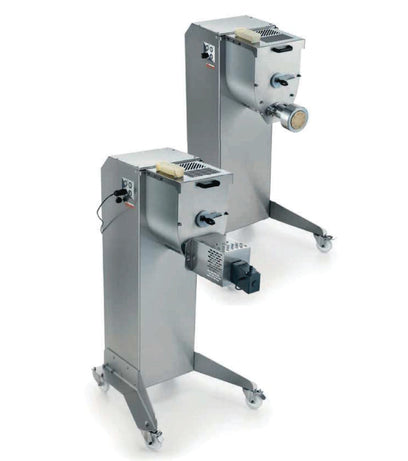

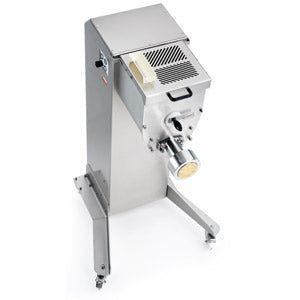

The Orchestra 10 is a freestanding pasta making machine with a Ø 110 mm die and is suitable for small workshops and large restaurants or canteen. It has a self-supporting structure with 4 stainless steel wheels. It is a high-performance machine with a powerful, air-cooled motor with oil bath gear box reducer. The forced air-cooling system ensures it is capable for heavy-duty use. Comes with IP67 controls and a large range of dies and extra accessories including the Raviomatic and an optional pasta cutting attachment also. It is a heavy-duty unit designed for larger applications of pasta supply. The Orchestra 10 2V has a 3-phase supply inverter controlled motor allowing the machine to run off a convenient single phase 10 amp plug. It has a 21-litre hopper with 9.8kg batch capacity.
Features
- Suitable for small workshops and large restaurants or canteens.
- Reliable, user-friendly and easy to clean.
- AISI 304 stainless steel body.
- Self-supporting structure with 4 stainless steel wheels.
- Powerful, air-cooled motor with oil bath gear box reducer.

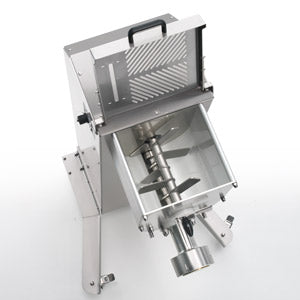

- High-performance and easy to remove kneading paddle.
- Interlocked stainless steel lid.
- Convenient removable tunnel to add liquid ingredients during processing.
Specifications
- Parts Warranty (years): 2
- Labour Warranty (years): 2
- Country of Origin: Italy
- Power (phases): Single
- Volts: 240V
- Power (kW): 2.25kW
- Plug Supplied: 10A plug
- Dimensions: 780mm W x 812mm D x 1360mm H
Spec Sheets – Click Here to Download
