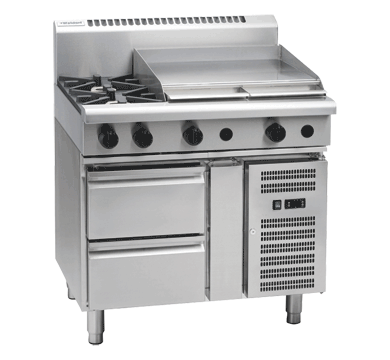

Waldorf 800 Series RN8606G-RB - 900mm Gas Cooktop Refrigerated Base




$0.00

Waldorf

RN8606G-RB


Notify Me

Payment & Security
Payment methods
  • PayPal
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
QUALITY
hospitality equipments
BIG SAVINGS
on bulk purchases
QUICK SUPPORT
contact us

General Specifications

900mm (W) x 805mm (D) x 1130mm (H)

Gas Natural 2 x 28MJ 2 x 20MJ Griddle Burner

Electrical connection 220-240Vac, 50Hz, 1.8A, 1P+N+E 3 pin 10A plug cordset fitted

Weight 245Kg

1 Year Parts and Labour Warranty

-

Features

Refrigerated base (supplied as –RB model)

Self contained suite matched modular base

Ventilated system with R134a refrigerant

-2˚ to + 8˚C temperature (Tropical Climate rated)

Two GN 1/1 drawers

100mm deep pan capacity

Heavy-duty European telescopic drawer guides

Magnetic drawer gaskets (replaceable without tools)

50mm fully foamed CFC free insulation

304 stainless steel exterior and interior

Anti-corrosion treated evaporator

No condensate drain required

63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet

Condensing unit removable through front of unit for service

Easy clean interior

Heavy-duty construction

Flame failure standard

Pilot burners optional

300mm griddle plate option

Optional simmer plates

Stainless steel exterior

Easy clean

Easy service

Fully modular

Low back models (RNL) available

Welded hob with 1.5mm 304 stainless steel bull nose

Splashback and side panels 1.2mm 304 stainless steel

Front panels 0.9mm 304 stainless steel

Aluminised steel internal construction

Vitreous enamelled cast iron potstands

Vitreous enamelled open burner spill cover

Cast iron simmer plates (optional extra)

12mm thick mild steel griddle plate

2.5mm 304 stainless steel griddle splash guards

Vitreous enamelled spill trays Bench mount (supplied as –B model)

Four 63mm dia. heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet.

Adjustable height 80mm – 105mm Controls

Variable high to low controls to open burners

Open burners flame failure standard with pilot burners optional

Variable high to low controls to griddles

Griddles standard with pilot, flame failure and piezo ignition

Large easy use control knob - heat resistant reinforced

Easy view control settings on knob Cleaning and Ser vicing

All models with easy clean stainless steel external finish

Lift off burners heads and vitreous enamelled burner spill covers

Vitreous enamelled spill trays under open burner and griddle section

Access to all parts from front of uni
