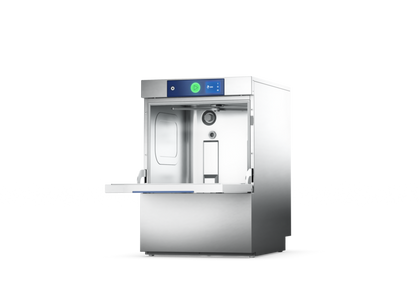

A smaller model for professional use in bars, restaurants and hotels. With a water consumption of just 1.9 litres this is the most economical glasswasher on the market.
Front door glasswasher
Nominal capacity up to 48 racks/h or 960 glasses/h 6
Automatic cycles: short, standard, intensive rinse, cold water rinse, basic cleaning, hygiene
Smooth counterbalanced door with closing mechanism
Integrated WiFi module
Multi-setting: easy switchable from 415 V to 240 V on site
Ready to install - completely equipped: fill / drain hose, power cord (400 V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer
Tank, frame, rinse arm and panels are stainless steel 1.4301
1 glass rack 371450-84: 400 x 400 mm
Features
Compact glasswasher: with an installation height of only 705 mm ideal for narrow places or with integrated reverse osmosis and an installation height of 820 mm ideal for undercounter installation.
VISIOTRONIC-TOUCH control: colour touchscreen (displays text and graphic) in conjunction with singlebutton control and remaining cycle time indication.
SMARTCONNECT app: controlling your warewash operation with smart technology: status and messages, usage and operating costs, hygiene, service and consumables order. 1.9 l rinsing: water consumption per cycle of only 1.9 l which results in a reduction of water, chemicals and energy consumption of 35 %.
CLIP-IN wash and rinse arms: can be removed with one hand and without any tools. Intelligent data documentation: automatic recording of important operational data and consumptions and indication on the display.
USB-interface: comfortable download of operational data in form of a protocol via USB
GENIUS-X² fine filter system: advanced filter system with prewash function reduces detergent consumption up to 35 %. Intensive programme: intensive rinse cycle to wash glasses with critical design with raised fresh-water amount. Interlocked strainer: prevents operation without tank strainer.
Optional refill signal: monitors contents of external as well as integrated chemical containers. Hygiene programme: for removal of calcium carbonate and other deposits from wash chamber.
Specifications
TECHNICAL DATA
Cycle Times* 75 / 120 sec. and special cycles
Water Consumption 1.9 L/Rack
Tank Capacity 8 L
Tank Heating 0.8 kW
Power Supply 415 / 50 / 3+NPE (ALT: 240 / 50 / 1)
Booster Loading - Standard 2.8 kW
Booster Loading - Alternative 4.2 kW
Total Loading - Standard 3.2 kW | 3 x 15 A
Total Loading - Alternative 5.4 kW | 15 A
Wash Pump 0.6 kW | 220 L/min
Rack Size 400 x 400 mm
Loading Height 315 mm
Noise Level 62 dB (A)
Weight (gross / net) 64 / 58 kg
*Thermostop guarantees required temperatures with cold water and / or 230 V connection, the actual cycle times extend accordingly.
For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or an external water softener of the product line HYDROLINE PROTECT. To avoid spots and streaks on the wash ware, we recommend the usage of an demineralisation cartridge (HYDROLINE STAR / STAR EXTRA) or a reverse osmosis system HYDROLINE PURE.
Net Weight (kg):58
