Due to the high wash power, the double-walled housing and the robust filter systems, it is the quiet and resource saving solution for your busy workday life.

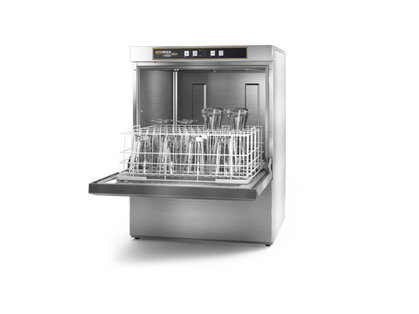

Front door glasswasher with optional double rack system
Nominal capacity up to 60 racks/h or 1080 plates/h or 2160 glasses/h
Nominal capacity with double rack up to 80 racks/h (40 plate racks + 40 glass/cup racks)
3 automatic cycles: 60 / 90 / 180 seconds
Ready to install - completely equipped: fill / drain hose, power cord (240V connection), detergent dispenser, rinse aid dispenser, rinse pump, drain pump and back-flow preventer tank, frame, rinse arm and panel are stainless steel 1.4301 1 plate rack P-18-12 1 universal rack B-00-07 1 cutlery box
Features
. HIGH VOLUME undercounter dish and glass washer
• LOW VOLUME (10.6litre) single sheet deep drawn wash tank - no welds
• EFFICIENT & GUARANTEED - 2.3 litres / cycle water consumption - rinse pump included to guarantee rinse volume, pressure and sanitation results
• Electronic control with digital temperature read-out
• 3 CYCLES: 60 / 90 / 180 secs - Nominal capacity up to 60 racks/h
• HEAT AND NOISE INSULATED - double walled construction
• Insulated smooth opening counter balanced door
• Removable tank strainer, coarse filter and pump suction casing to maximise wash results and reliability
• Integrated SELF CLEANING on drain out
• Top and bottom rotating wash and rinse arms
• Ready to install - equipped with: fill/drain hoses, electrical cable & plug(15amp 240V), detergent & rinse aid dispensers, rinse pump, drain pump, back flow preventer (Watermark approved), adjustable front feet for levelling and castor rear feet for ease of moving for cleaning under
• Supplied with 1 off 500 x 500mm plate rack, flat rack and single cutlery container
• WATERMARK approved
• 240 / 50 / 1 - 15amp • (Optional 415/50/3 - additional cost)
Specifications
TECHNICAL DATA
Cycle Times* 60 / 90 / 180 seconds
Water Consumption 2.3 L/cycle
Tank Capacity 10.6 litres
Power Supply 240 / 50 / 1 (standard)
Booster Loading - Standard 2.1 kW (interlocked)
Booster Loading - Alternative 6.2 kW
Total Loading - Standard 2.9 kW l 15 A
Total Loading - Alternative 7.7 kW l 415/50/3N
Wash Pump 0.6 kW
Rack Size 500 x 500 mm
Loading Height 425 mm
Noise Level 60.5 dB (A)
Weight (gross / net) 70 / 60 kg
Power: 2.8kW
Width(mm):600 x Depth(mm):600 x Height(mm):820
Net Weight (kg):60
