General Specifications
735mm (W) x 810mm (D) x 914mm (H)
Electrical 230-240V, 50Hz, 1P+N+E, 1.5kW, 6.3A 10A cordset fitted
Weight 77.5kg
1 Year Parts and Labour Warranty
-
Features

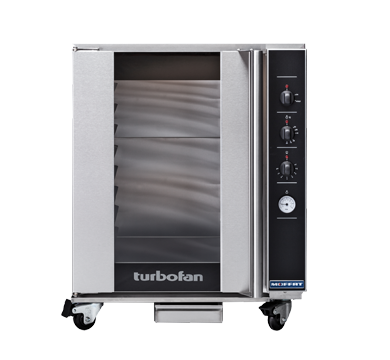

Dual function Prover and Holding Cabinet
Designed for individual use or system installed with Turbofan 32D Convection Ovens
8 460mm x 660mm / 18” x 26” full size sheet pan capacity
16 460mm x 330mm / 18” x 13” half size sheet pan capacity
8 400mm x 600mm tray capacity (optional kit)
76mm tray spacing
Compact 735mm width
10A plug-in cordset fitted
Full double skin construction
Auto water fill system with optional integrated water filter kit
Continuous door seal
Side hinged door (standard LH hinge)
Optional RH hinge (field convertible)
Off / Prove / Hold mode selection
Low velocity circulation fan system
Mechanical thermostat
Humidity level control
Dual halogen cabinet interior lamps
Cabinet temperature display thermometer
4 dia. 76mm castors with 2 front castors dual wheel and swivel lock, 2 rigid rear castors
100% recyclable packaging
