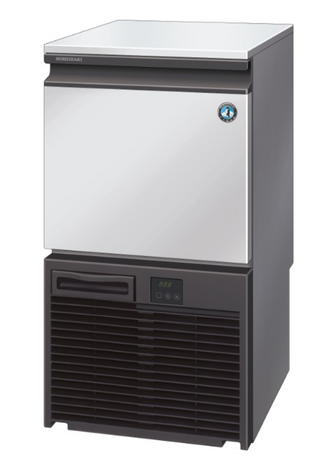

Crescent Ice Maker Self Contained - KM-40C-HC

Write a review

$0.00

Movement : Ice Makers

SKU : 91000147

Translation missing: en.products.product.product_variants

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

QUALITY

hospitality equipments

BIG SAVINGS

on bulk purchases

QUICK SUPPORT

Individual premium crescent cube with no ice bridging.
Protected by HoshiGuard Antimicrobial Agent.
CycleSaver® technology includes a double-sided
evaporator, uniquely crafted in stainless steel, which
produces ice on both sides, resulting in more ice in less
amount of time.
EverCheckTM Control Board with audible alarm
and diagnostic features, designed to assist service
technicians in diagnosing problems.

Accessible digital operation panel allows for easy
identification of operation status and cause of faults.
Fully automated chemical cleaning function makes
cleaning simple and saves time.
Durable stainless steel exterior.
Easily removable & cleanable air filters on front panel
Accessories : Manual, Scoop, check valve and
150mm adjustable legs included (water filter and
optional hex bolt legs sold separately)

Type of Ice:

CRESCENT

Production Capacity Per 24hours	Approx. 41kg @21°C Air temp; 15°C Water Approx. 33kg @32°C Air temp; 21°C Water
Max Storage Capacity	Approx. 16kg
Freeze Cycle Time	Approx. 23 Min
Ice Production Per Cycle	Approx. 0.71kg/80pcs
Dimensions	452mm (W) x 610mm (D) x 838mm (H) (982-1005mm [H] with 150mm adjustable legs) (842mm [H] with optional hex bolt leg)
Cooling	Air
Weight Net/Gross (kg)	39 / 40
AC Supply Voltage	1 PHASE 220-240V 50Hz/ 10Amp Plug
Amperage	Running: 1.4A
Refrigerant Charge	R290 / 68g
Operating Conditions	Ambient Temp.: 7-38°C Water Supply Temp.: 7.32°C Water Supply Pressure: 0.07-0.8MPa (0.7-8bar) Voltage Range: ± 6%
Electrical Consumption	13.8kWh per 100kg ice (AT 32°C; WT 21°C)
Water Consumption / 24 hrs	Approx. 0.08m3/d (AT 32°C; WT 21°C)
Compatible Water Filter	HLF10 Filter System (sold separately)
