General Specifications
1191mm (W) x 752mm (D) x 1158mm (H)
Gas Natural / LPG 253.3Mj
Electrical 230/240V, 50Hz, 6A (Cord & 10A Plug provided)
Capacity 25L x 3 Fry Pots
1 Year Parts and Labour Warranty
Features
Open-pot design (split or full) is easy to clean
(25 L) oil capacity per full frypot; 12.5L per split frypot
Frying area: (35.6 x 38.1 x 11.4 cm) per full frypot; (16.5 x 38.1 x 12.1 cm) per split frypot
CM3.5 controllers
Stainless steel frypot, door and cabinet
Center-mounted, RTD, 1° compensating temperature probe
Deep cold zone with forward-sloping bottom and IPS full-port, ball-type drain valve-- 1-1 /4” full frypot; 1” (split frypot)
Infrared burners ensure state-of-the-art heat transfer
Electronic ignition
Automatic melt cycle and boil-out temperature control
Two baskets per frypot
Castors
Built-infiltration
Drain safety switch
Rear oil flush
Frypot covers
Front Oil Discharge with 168cm wand - full pot model only - (-FD), refer coding guide table
25 litre oil capacity
Space-saving filter which fits inside fryer cabinet housing two full or qualifying split frypots in two left most cabinets of the battery
Filter pan designed on rails to clear floormats for easy cleaning
Sloped drain pan leaves minimal residue oil behind after filtering
Large 3” (8.0 cm) round drain line allows oil to drain freely
1/3 H.P. filter motor
4 GPM (15 LPM) pump

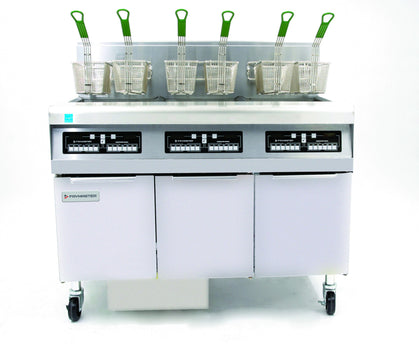

Frymaster’s H55 is a premium open-pot fryer that combines state-of-the-art technology with decades of frying experience and customer satisfaction to set the standard for high-efficiency frying. The H55 fryer saves thousands of dollars annually on energy costs.
Infrared burners and blower system delivers an ultra-refined air-gas mixture so the fryer operates well in any gas application such as at high altitudes, in environments where air circulation is sub-optimal or when the heating value of the gas is diminished. Frymaster’s renowned, built-in filtration system puts filtration where it’s most convenient to use - right within the fryer battery eliminating the need for additional floor and storage space.
