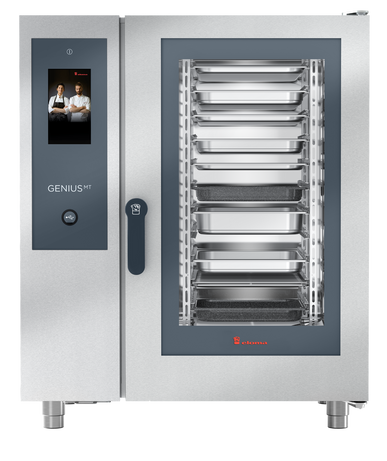

GENIUS MT Combi Steamer 10-11 Gas EL1116001-2A
925mm (W) x 805mm (D) x 1120mm (H)
Electrical 230 V 1N AC
Gas 20kW
Capacity 11 x GN 1/1
Spacing 67mm
Temperature Range 30°C- 300°C
Weight 156Kg
2 Years Parts and Warranty Labour
12 operating modes:
Steaming
Intensive steaming
Vario steaming
Convection
Combi-cooking
Low-temperature cooking
Delta-T cooking
Regenerating
Baking with steam injection
Holding
Proofing
Thawing
• MT technology: Baking mode
• Eco Steam
• Power Steam
• Multi-eco system for heat recovery
• Multi menu
• Glass control unit with 9" display
• Control unit with MultiTouch display
• LAN interface
• USB interface
• Inner and outer housing made of rustproof stainless steel
• IPX 5 (jet water protection)
• Integrated hose with hand shower
• Fresh steam system
• Seamless hygienic cooking chamber
• Adjustable air deflector
• Door with LED lighting and double glazing
• Right-hinged door
• Door latch position 90 °
• Flashing light at the end of the cooking programme
• Adjustable volume of the signal tone
Quick-action door closure
• Supply air/exhaust air
• Internal multi-point core temperature probe with 4 measuring points
• Frequency converter
Manual cooking / Manual baking:
Temperature, adjustable between 30 °C–300 °C – accurate to the degree
Core temperature, adjustable between 20 °C–100 °C – accurate to the degree
Humidity range, adjustable between 0 – 100 % – percentage accurate
Steam injection quantity, adjustable in 1 ml steps or seconds
Manual humidification (additional)
Automatic resting time in accordance with the steam injection quantity
Time, adjustable up to 24 hours, including continuous operation
• Steptronic®
• Step overview
• Manual work steps
• Favourites marking during the saving process
• Menu group marking during the saving process
• Product group marking during the saving process
• Bar and product code marking during the saving process
• ADC – Active dehumidification control in 5 stages
• Fan speed in 5 increments
• Timed fan speeds
• Fan wheel autoreverse
• Preheat function with temperature specification, adjustable and adaptable
• E/2 Energy saving function
• SPS® – Steam Protection System
• Timer function: Input of start and end time
• Display of actual/target temperature
• Display of the actual core temperature
• Display steam injection quantity
• Cool-down function active-temp adjustable (default setting for autoclean® PRO with solid detergent)
• Cool Down function: Adjustable Manual-Temp
• Cool Down function: Auto-Temp (default setting)
Cleaning & Care
Fully automatic cleaning autoclean® PRO with liquid cleaner
Drying phase freely selectable
The drying phase can be interrupted during the cleaning operations
Vario hanging rack- More capacity, resource-saving. Can be used flexibly for both GN and BN accessories.
Eco Steam- More power with significantly less consumption. Energy-optimised and water-saving.
Power Steam- The powerful function for demanding food.
LED and double glazing- Lower power consumption, more environmentally friendly and longer service life.
autoclean® PRO- Water-saving, fewer chemicals in use, more flexibility.
9 inch display- Capacitive display with glass control element and intuitive operating concept.
Customisable software- Advanced personalisation options make daily work with the unit easier.
Cooking time extension / Prolonged baking function
• Repeat mode
• Changing settings during operation
• Stop Preheat during operation
• Half occupancy function
• Last® 20
• Programme list with 1000 programs, with 20 steps each:
Program search
Programme list (alphabetical)
Displaying and filtering menu groups
Displaying and filtering product groups
• Favourites list:
Favourites search
Displaying and filtering menu groups
Displaying and filtering product groups
• Special programs:
Low-temperature cooking
Delta-T cooking
Regenerating
Holding
Thawing
Proofing
• Alphanumeric memory function with image and sound selection
• Weekly programming PRO for cooking/baking programmes and autoclean® PRO
• Multi Cooking PRO / Multi Baking PRO.
• Quick Mode cooking/baking
• Quick Mode cleaning
• Quick Set
• Individualisation of the operating concept with password manager
• Vario hanging rack for GN and BN accessories
• Settings & Service:
Language setting in 25 languages
Time and date setting
Keyboard setting: 6 different versions
Alphanumeric input
Data and HACCP logging and display
Automated cleaning and maintenance instructions, including blocking
Automatic switching between standard time and daylight saving time
Programs and Media Manager:
Image manager
Favourites manager
Program manager PRO
Sound manager
Program information input on device
• Plug-in door seal for easy cleaning and maintenance
• Note: Clean air filter
• Water filter monitoring
• Setting and customisation options (Quick Modes/Direct Modes)
• Start-up Settings
Standby image and time
Version: light or dark
Start screen
• Standby after cleaning and 15 min. inactivity
• Stackable (modular solutions)
Weight 166Kg
2 Years Parts and Warranty Labour
