General Specifications
900mm (W) x 800mm (D) x 1085mm (H)
Gas 22MJ/hr, 5.5kW each
Griddle Burners; 20MJ/hr, 5.0kW per 300mm section
Gas power (gross) C9B 84MJ/hr, 23.3kW
Weight 89.5kg
1 Year Parts and Labour Warranty
-
Features
900mm wide

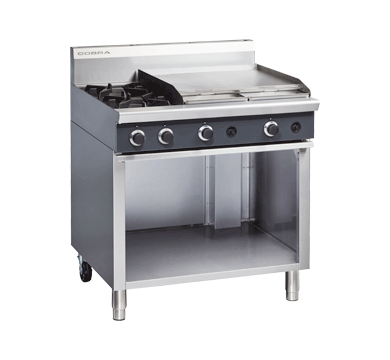

2 open burners with 600mm griddle on open cabinet base
22MJ open burner rating
Flame failure standard on open burners
Optional pilot and flame failure on open burners
Cast iron burners and vitreous enamel potstands
Open cabinet base for extra storage
Adjustable front feet and rear rollers
Stainless steel finish
Fully modular
Cast iron open burner heads with vitreous enamelled cast iron caps
Vitreous enamelled potstands
Vitreous enamelled control panel
Stainless steel front, sides and splashback
Stainless steel cabinet interior base
Stainless steel spill tray
63mm dia. stainless steel adjustable legs to front and two rollers at rear
Large easy use control knobs
Variable high to low controls to open burners
Flame failure standard on open burners
Optional pilot and flame failure on open burners
Easy clean stainless steel exterior
Vitreous enamelled potstands and burner caps
Lift off open burner caps and removable burners
Removable spill trays
Access to all parts from front of unit
